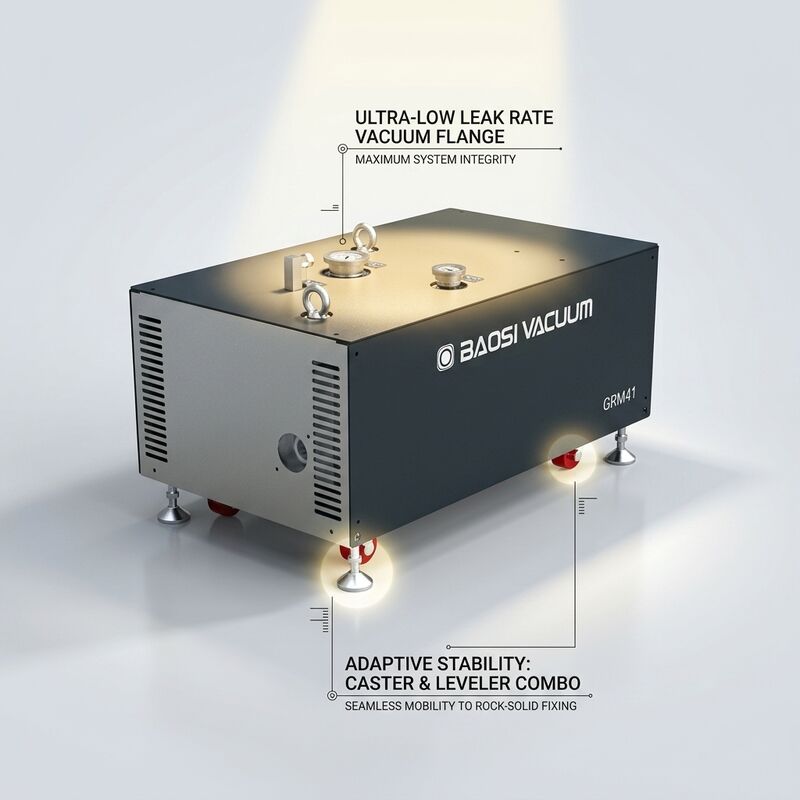

GRM41 Dry Vacuum Pump System 600 L/min KF40 PMSM Energy Efficient Drive for Semiconductor Vacuum Coating
-
Highlight
Dry Vacuum Pump System GRM41
,PMSM Energy Efficient Drive Pump
,Semiconductor Vacuum Coating Solution
-
ModelGRM41
-
TypeDry Vacuum Pump System
-
Maximum Pumping Speed600 L/min (36 M³/h)
-
Ultimate Pressure (Gas Ballast Open)≤10 Pa
-
Ultimate Pressure (Gas Ballast Closed)≤1 Pa
-
Max Continuous Inlet Pressure1000 Mbar
-
Exhaust Pressure≤3000 Pa
-
Motor Power0.75 KW
-
Motor TypePMSM (Permanent Magnet Synchronous Motor)
-
Power Supply200-240V, Single Phase, 50/60Hz
-
Rated Current2.4 A
-
Inlet ConnectionKF40
-
Outlet ConnectionKF25
-
Gas Ballast ConnectionPT1/4
-
Gas Ballast Pressure0.02-0.05 MPa
-
Max Water Vapor Capacity350 G/h
-
Noise Level≤65 DB
-
Oil Volume0.25 L
-
Weight54 Kg
-
Dimensions630×347×400 Mm
-
Protection ClassIP20D
-
Control InterfaceRS485 Remote Monitoring
-
Ambient Temperature5-40 ℃
-
Place of OriginZhejiang, China
-
Brand NameOEM
-
Model NumberGRM41
-
Minimum Order Quantity1 Set
-
PriceNegotiable
-
Packaging DetailsExport-grade plywood case with shock-proof foam insert and vacuum-sealed moisture barrier
-
Delivery Time15-30 working days after order confirmation
-
Payment TermsT/T
-
Supply Ability200 Sets per Month
GRM41 Dry Vacuum Pump System 600 L/min KF40 PMSM Energy Efficient Drive for Semiconductor Vacuum Coating
GRM41 Dry Vacuum Pump System
The GRM41 is a high-performance oil-free dry vacuum pump system engineered for demanding high-purity vacuum processes in semiconductor manufacturing, photovoltaic cell production, and flat panel display fabrication. Equipped with a PMSM (Permanent Magnet Synchronous Motor) energy-efficient drive delivering 0.75 kW output, this compact system achieves an impressive 600 L/min (36 m³/h) maximum pumping speed with an ultimate pressure of ≤1 Pa. The integrated RS485 remote monitoring interface enables seamless integration into automated production environments.
Key Features
- PMSM Energy Efficient Drive: Permanent magnet synchronous motor technology delivers superior energy efficiency with 0.75 kW power consumption, reducing operational costs while maintaining high performance.
- Oil-Free Dry Operation: No oil contamination risk in process chambers, ensuring ultra-clean vacuum conditions essential for semiconductor and photovoltaic manufacturing.
- High Vacuum Performance: Achieves ultimate pressure of ≤1 Pa (gas ballast closed) and ≤10 Pa (gas ballast open), suitable for demanding high-vacuum applications.
- Integrated Gas Ballast System: Built-in gas ballast valve with PT1/4 connection handles water vapor up to 350 g/h, preventing condensation and extending pump service life.
- RS485 Remote Monitoring: Intelligent control interface supports remote operation, parameter monitoring, and diagnostic capabilities for Industry 4.0 integration.
- Compact Lightweight Design: Dimensions of 630*347*400mm and weight of only 54 kg allow easy installation in space-constrained cleanroom environments.
- Low Noise Operation: Noise level ≤65 dB with integrated silencer and check valve, ensuring comfortable working environments.

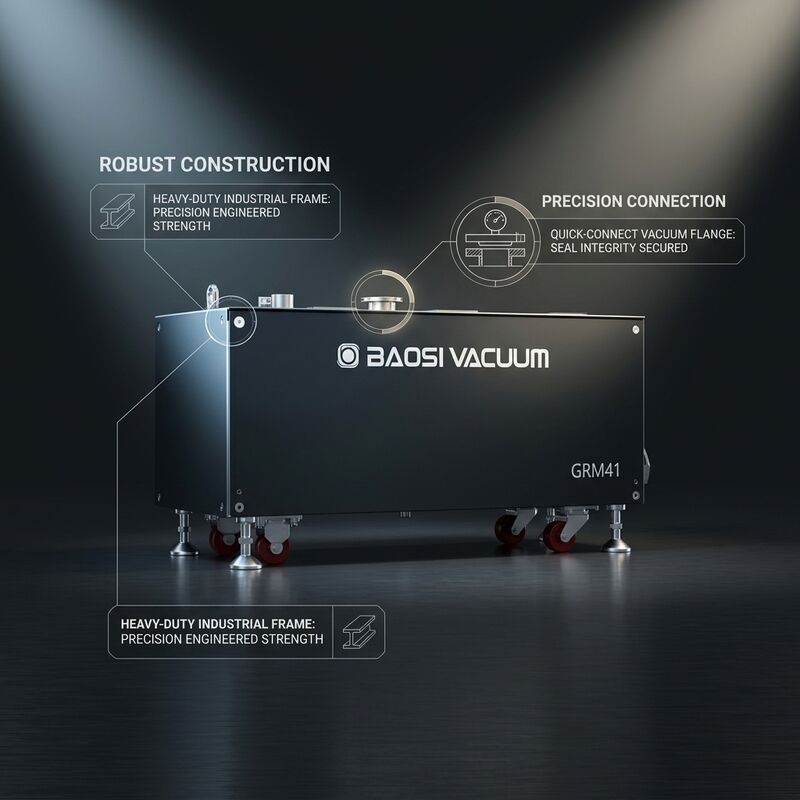

- Robust Construction: Aluminum alloy and cast iron housing with fluoroelastomer (FKM) seals ensure long-term reliability and chemical compatibility.
- KF Standard Interfaces: KF40 inlet and KF25 exhaust connections for quick, tool-free assembly with standard vacuum components.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | GRM41 |
| Type | Dry Vacuum Pump System |
| Maximum Pumping Speed | 600 L/min (36 m³/h) |
| Ultimate Pressure (Gas Ballast Open) | ≤10 Pa |
| Ultimate Pressure (Gas Ballast Closed) | ≤1 Pa |
| Max Continuous Inlet Pressure | 1000 mbar |
| Exhaust Pressure | ≤3000 Pa |
| Motor Power | 0.75 kW |
| Motor Type | PMSM (Permanent Magnet Synchronous Motor) |
| Power Supply | 200-240V, Single Phase, 50/60Hz |
| Rated Current | 2.4 A |
| Inlet Connection | KF40 |
| Outlet Connection | KF25 |
| Gas Ballast Connection | PT1/4 |
| Gas Ballast Pressure | 0.02-0.05 MPa |
| Max Water Vapor Capacity | 350 g/h |
| Noise Level | ≤65 dB |
| Oil Volume | 0.25 L |
| Weight | 54 kg |
| Dimensions (L*W*H) | 630*347*400 mm |
| Protection Class | IP20D |
| Control Interface | RS485 Remote Monitoring |
| Ambient Temperature | 5-40 ℃ |
Typical Applications
- Semiconductor wafer processing and fabrication
- Photovoltaic cell manufacturing (PVD, PECVD, etching)
- Flat panel display and OLED production
- Vacuum coating and thin film deposition
- Research and laboratory high-vacuum systems
- Laser and optics industry
- Analytical instrumentation backing pump
- Load lock chamber evacuation
