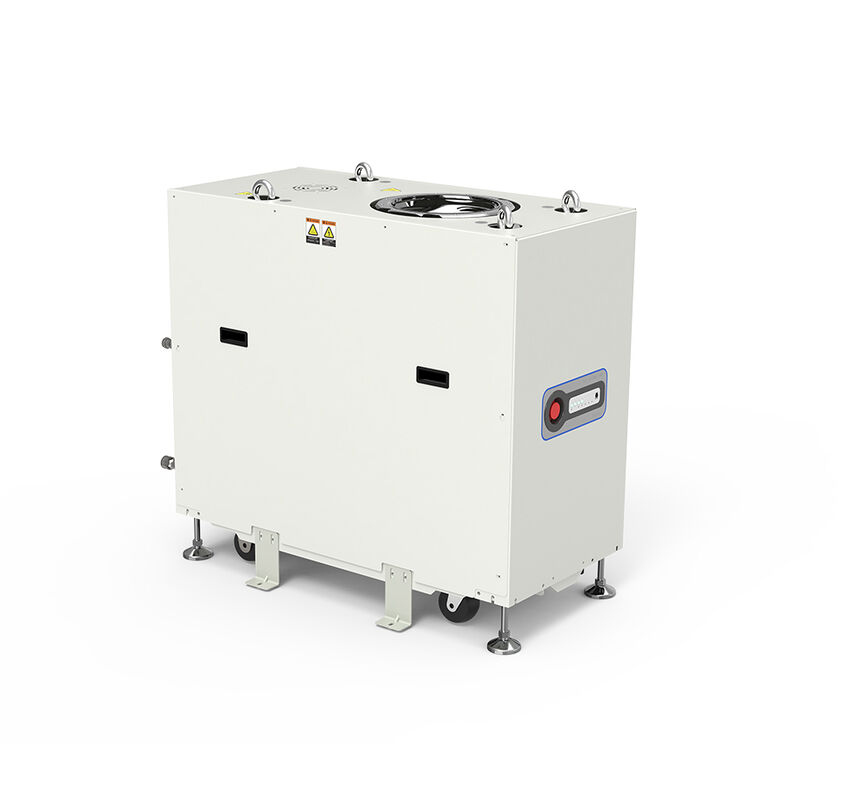

GRH3001 3000 M³/H dry type vacuum pump with Permanent Magnet Synchronous Motor
-
Highlight
Permanent Magnet Motor dry vacuum pump
,3000 m³/h dry vacuum pump
,Semiconductor PV dry vacuum pump
-
Pump TypeDry Vacuum Pump
-
Pumping Speed3000 M³/h
-
Ultimate Pressure≤0.5 Pa
-
Motor TypePermanent Magnet Synchronous Motor (PMSM)
-
Rated Power11+7.5 KW
-
Voltage380V Three-Phase
-
Cooling Water Temperature5-30 °C
-
Cooling Water Flow≥11 L/min
-
N2 Purge Flow43-123 L/min
-
Inlet ConnectionISO160
-
Outlet ConnectionKF40
-
Noise Level≤70 DB(A)
-
Weight770 Kg
-
Dimensions (L×W×H)922×516×988 Mm
-
Control InterfaceI/O And RS485 (Modbus Protocol)
-
Sealing SystemLip Seal + Labyrinth Seal With N2 Purge
-
Place of OriginChina
-
Brand NameGRH
-
CertificationISO 9001:2015, ISO 14001:2015, ISO 45001:2018
-
Model NumberGRH3001
-
Minimum Order Quantity1 Set
-
PriceUSD 18,000-25,000 / Set
-
Packaging DetailsExport-grade plywood case with vacuum-sealed moisture barrier and shock-proof foam insert
-
Delivery Time15-30 working days
-
Payment TermsT/T, L/C, Western Union
-
Supply Ability500 Sets per Month
GRH3001 3000 M³/H dry type vacuum pump with Permanent Magnet Synchronous Motor
GRH3001 Dry Vacuum Pump
The GRH3001 is a 3000 m³/h dry vacuum pump built for medium-to-large scale semiconductor and photovoltaic manufacturing. It combines an oil-free pump chamber, compact design, and low energy consumption for reliable high-volume performance.
Key Features
- Permanent Magnet Synchronous Motor — Delivers superior energy efficiency and lower power consumption compared to conventional induction motors.
- Advanced Rotor Structure — Enhanced dust extraction capability, making the pump highly tolerant to particulate-laden process gases.
- Dust and Water Vapor Tolerant — Insensitive to dust and water vapor entrained in the pumped gas stream.
- Compact and Integrated Design — Small footprint with high system integration for easy installation in crowded fab environments.
- Comprehensive Protection — Built-in protection functions with strong adaptive capability for varying process conditions.
- Low Vibration and Noise — Operates at ≤70 dB(A) at ultimate pressure for a quieter workplace.
- Advanced Sealing System — Lip seal and labyrinth seal combined with nitrogen purge effectively prevents oil back-streaming, ensuring high vacuum cleanliness in the process chamber.
- Remote Control and Monitoring — Supports I/O interface and RS485 communication (Modbus protocol) for seamless integration into factory automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Pumping Speed | 3000 m³/h |
| Ultimate Pressure | ≤0.5 Pa |
| Rated Power | 11+7.5 kW |
| Voltage | 380V Three-Phase |
| Cooling Water Pressure | 0.2-0.6 MPa |
| Cooling Water Flow | ≥11 L/min |
| Cooling Water Temperature | 5-30 °C |
| Cooling Water Connection | G3/8 |
| N2 Purge Pressure | 0.2-0.6 MPa |
| N2 Purge Flow | 43-123 L/min |
| N2 Purge Connection | G1/4 |
| Inlet Connection | ISO160 |
| Outlet Connection | KF40 |
| Noise Level | ≤70 dB(A) |
| Operating Environment | 5~40°C; ≤80% RH |
| Weight | 770 kg |
| Dimensions (L*W*H) | 922*516*988 mm |
Application Processes
Clean Processes
Load-Lock, Transfer, Metrology, Lithography
Medium Processes
PVD Process, PVD Pre-Clean, RTA, Strip/Ashing, Oxide Etch, Silicon Etch, Implant Source, Metal Etch
Harsh Processes
HDP-CVD, RTP, SACVD, MOCVD, PECVD, LPCVD, ALD
Target Industries
- Semiconductor: Etching, ion implantation, CVD, and other clean, medium, and harsh process applications.
- Photovoltaic: Crystal growth furnaces, cell manufacturing processes.
- Lithium Battery: Cell vacuum drying, electrolyte filling, and degassing processes.
- Flat Panel Display & LED: Manufacturing processes requiring high-cleanliness vacuum environments.
