Displacement16 M³/h
-
Power0.75 KW
-
Vacuum-600mbar
-
PhaseSingle/three
-
Place of OriginCHINA
-
Brand NameEURO
-
Model NumberBVT16
-
Minimum Order Quantity1
-
PriceNegotation
-
Packaging Detailsplywooden box
-
Delivery Time5-8 working days after get the payment
-
Payment TermsT/T

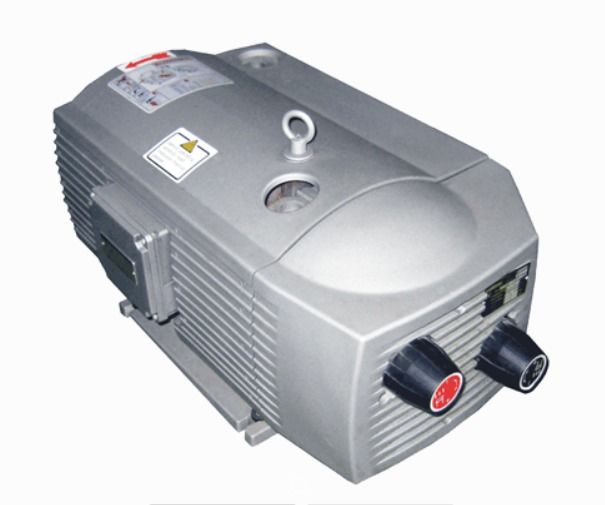

16m³/h dry ruuning vacuum pressure combined pumps
16 m³/h Oil Free rotary vane Vacuum Pump
Description
The BVT series oil-less rotary vane pressure/vacuum 2-in-1 combined pumps are well-suited for applications involving higher pressure differences in both vacuum and pressure scenarios. Their design incorporated secondary inlet ports,which enable a continuous flow of inlet air.
This feature allows the compressor to function independently of the vacuum pump,enhancing operational flexibility and efficiency.
Technical Data
| Displacement | Power | Vacuum/Pressure | Noise | Single Phase | Three Phases | Weight | ||||
| 50HZ | 60HZ | 50HZ | 60HZ | VACUUM | PRESSURE | dB(A) | ||||
| BVT16 | 16 | 19.2 | 0.75 | 0.9 | -600 | +600 | 69 | √ | √ | 36 |
| BVT25 | 25 | 30 | 1.25 | 1.5 | -600 | +600 | 69 | √ | √ | 36 |
| BVT40 | 40 | 48 | 1.85 | 2.2 | -600 | +600 | 68 | √ | √ | 45 |
Performance Curve
Dimensions
Feedback from clients
https://youtu.be/3ecsqle7bs4
Applications
Oil-less rotary vane pressure/vacuum pumps are widely used in various industries due to their clean operation (no oil contamination) and reliable performance. Here are key application scenarios:
Semiconductor
Electronics
Vacuum coating
Food packaging
Laboratory and research
Materials science
Our products are sold all over the world, you can rest assured.
