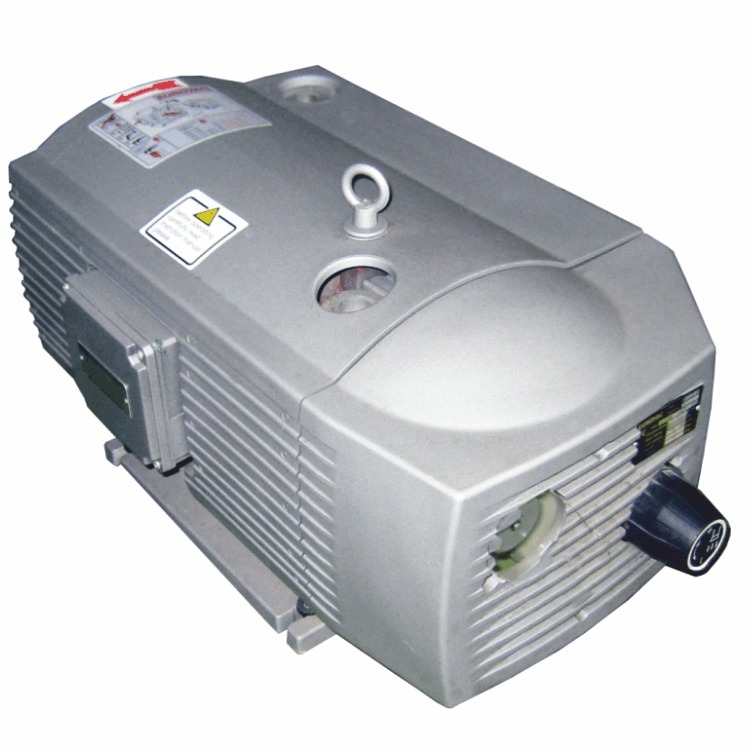

40 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE40K

40 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE40K

Products - Oil Free Rotary Vane Vacuum Pump
  • Features
    Oil Free, Compact Design, High Efficiency
  • Model
    Oil Free Rotary Vane Vacuum Pump
  • Type
    DE40K
  • Motor Power
    1.85/2.2kW
  • Warranty
    1 Year
  • Power
    50/60 Hz
  • Displacement
    40/48 M³/h
  • Single Phase
    230V±10%
  • Three-phases
    190-255V/330-440V±10%
  • Pressure
    +1000mbar
  • Noise Level
    67dB
  • Weight
    46kgs
  • Place of Origin
    CHINA
  • Brand Name
    EURO
  • Model Number
    DE40K
  • Minimum Order Quantity
    1
  • Price
    Negotation
  • Packaging Details
    plywooden box
  • Delivery Time
    5-8 working days after get the payment
  • Payment Terms
    T/T

40 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE40K

  • 40 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE40K
Get Price Contact Now

40 m³/h dry-running low-pressure compressor,oil-free, air-cooled,DE40K


Description

Our DE and KDE series are the counterparts to VE/KVE models,dry-running compression pumps.
The range here starts with an air displacement capability of 10 m³/h for our smallest compressors and reaches up to 140m³/h.

Our Eurovac dry-running rotary vane compressors are robust, durable, and ideal for medium-pressure applications. They are designed for longevity and low maintenance.


​Technical Data


TYPE

AIR FLOW
(m³/h)

 MOTOR POWER(kW) MOTOR VOLTAGE(V) (3P) MOTOR VOLTAGE(V) (1P)

Speed
(rpm)

Pressure
(mbar)

Noise
(dB)

 Weight (kgs)
50HZ 60HZ 50HZ 60HZ 50HZ 60HZ 50HZ/60HZ 50HZ 60HZ
DE10 10 12 0.37 0.44

170-260V
/300-450V

202-300V
/350-520V

 230V±10% 1420 1700 +1000 62 16
DE16K 16K 19.2 0.75 0.9

170-260V
/300-450V

202-300V
/350-520V

 230V±10% 1420 1700 +1000 64 23.5
DE25K 25 30 1.25 1.5

190-255V
/330-440V

190-290V
/330-500V

 230V±10% 1420 1700 +1000 65 36.5
DE40K 40 48 1.85 2.2

190-255V
/330-440V

190-290V
/330-500V

 230V±10% 1420 1700 +1000 67 46




Performance Curve


40 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE40K 0
40 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE40K 1

Dimensions


40 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE40K 2


40 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE40K 3




Feedback from clients

https://youtu.be/3ecsqle7bs4




Highlights of DE/KDE series:


  • Low operation and maintenance costs
  • Cool operation
  • Quiet operation-no silence enclosures necessary
  • No cycling times
  • Straightforward construction for fast and easy service on-site to reduce downtime




Applications


  • Refining process with closed loop
  • Beverage industry
  • Protection against cavitation of turbines
  • Flushing arrangement for filters
  • Environment engineering
  • Pneumatic conveying
  • Printing industry
  • Food technology
