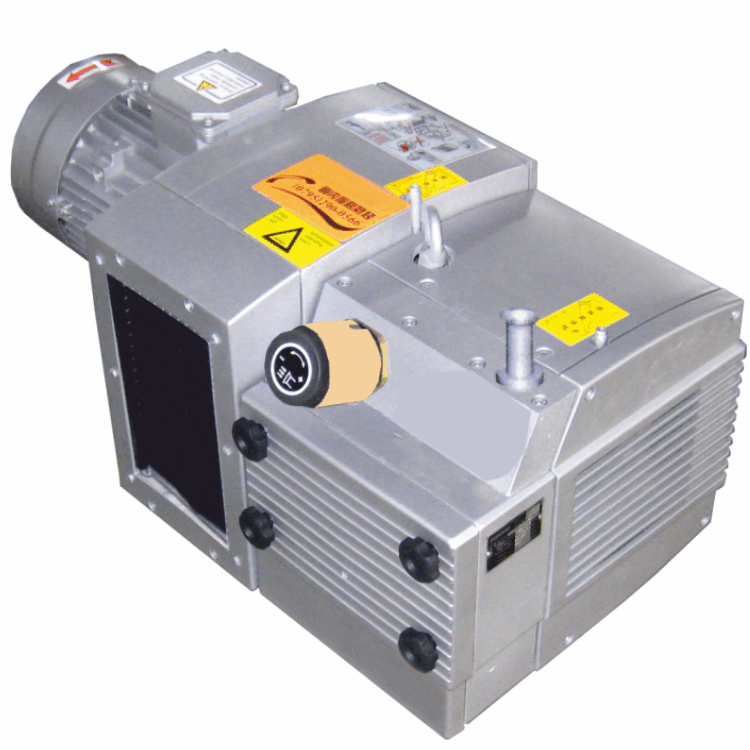

60 m³/h，rotary vane low-pressure compressor,oil-free, air-cooled,KDE60
-
FeaturesOil Free, Compact Design, High Efficiency
-
ModelOil Free Rotary Vane Vacuum Pump
-
TypeKDE60
-
Motor Power3.0/3.6kW
-
Warranty1 Year
-
Power50/60 Hz
-
Displacement60/72 M³/h
-
Three-phases230/400V ±10%
-
Pressure+1500mbar
-
Noise Level72dB
-
Weight69kgs
-
Place of OriginCHINA
-
Brand NameEURO
-
Model NumberKDE60
-
Minimum Order Quantity1
-
PriceNegotation
-
Packaging Detailsplywooden box
-
Delivery Time5-8 working days after get the payment
-
Payment TermsT/T
60 m³/h，rotary vane low-pressure compressor,oil-free, air-cooled,KDE60
60 m³/h rotary vane low-pressure compressor,oil-free, air-cooled,KDE60
Description
Our DE and KDE series are the counterparts to VE/KVE models,dry-running compression pumps.
The range here starts with an air displacement capability of 10 m³/h for our smallest compressors and reaches up to 140m³/h.
Our Eurovac dry-running rotary vane compressors are robust, durable, and ideal for medium-pressure applications. They are designed for longevity and low maintenance.
Technical Data
| TYPE | AIR FLOW(m³/h) | MOTOR POWER(kW) | MOTOR VOLTAGE (V) | Motor Speed(rpm) |
Pressure (mbar) |
Noise (dB) |
Weight (kgs) | |||
| 50HZ | 60HZ | 50HZ | 60HZ | 50HZ/60HZ | 50HZ | 60HZ | ||||
| KDE60 | 60 | 72 | 3 | 3.6 | 230/400V±10% | 1450 | 1740 | +1500 | 72 | 69 |
| KDE80 | 80 | 96 | 4 | 4.8 | 230/400V±10% | 1450 | 1740 | +1500 | 74 | 77 |
| KDE100 | 100 | 120 | 5.5 | 6.6 | 230/400V±10% | 1450 | 1740 | +1500 | 76 | 127 |
| KDE140 | 140 | 168 | 7.5 | 9 | 230/400V±10% | 1450 | 1740 | +1500 | 82 | 146 |
Performance Curve
Dimensions
Feedback from clients
https://youtu.be/3ecsqle7bs4
Highlights of DE/KDE series:
- Low operation and maintenance costs
- Cool operation
- Quiet operation-no silence enclosures necessary
- No cycling times
- Straightforward construction for fast and easy service on-site to reduce downtime
Applications
