FeaturesOil Free, Compact Design, High Efficiency
-
ModelOil Free Rotary Vane Vacuum Pump
-
TypeBVT140
-
Motor Power7.5/9kW
-
Warranty1 Year
-
Power50/60 Hz
-
Displacement140/168 M³/h
-
ApplicationLaboratory/Industrial
-
Vacuum-600mbar
-
Pressure+600mbar
-
Noise Level78dB
-
Weight140kgs
-
Place of OriginCHINA
-
Brand NameEURO
-
Model NumberBVT140
-
Minimum Order Quantity1
-
PriceNegotation
-
Packaging Detailsplywooden box
-
Delivery Time5-8 working days after get the payment
-
Payment TermsT/T

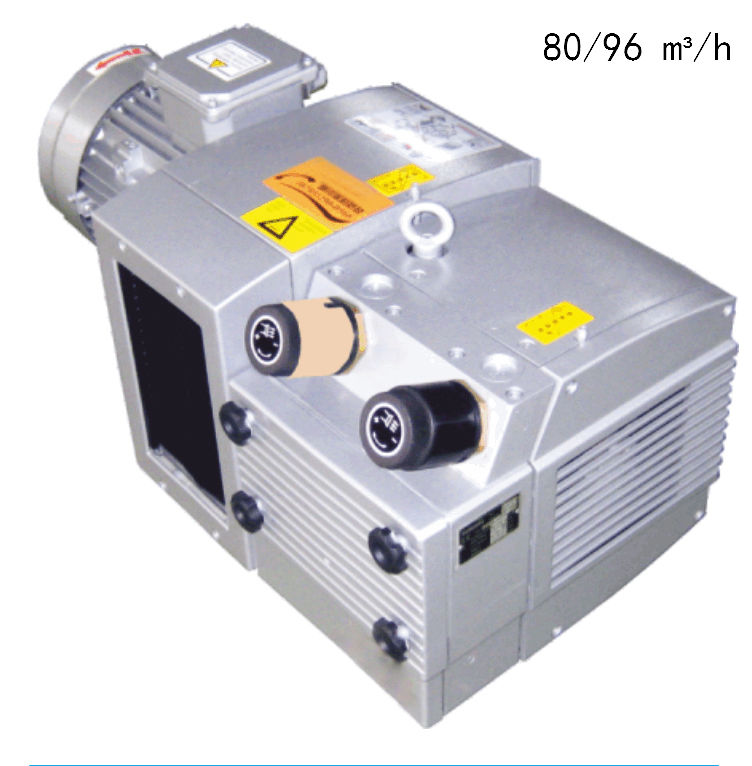

140 m³/h dry ruuning vacuum pressure combined pumps
100 m³/h Oil Free rotary vane Vacuum Pump
Description
The BVT series oil-less rotary vane pressure/vacuum 2-in-1 combined pumps are well-suited for applications involving higher pressure differences in both vacuum and pressure scenarios. Their design incorporated secondary inlet ports, which enable a continuous flow of air into the inlet.
This feature enables the compressor to operate independently of the vacuum pump, thereby enhancing operational flexibility and efficiency.
Technical Data
| Displacement | Power | Vacuum/Pressure | Noise | Motor Voltage(V) | Three Phases | Weight | |||||
| 50HZ | 60HZ | 50HZ | 60HZ | VACUUM | PRESSURE | dB(A) | 50hz | 60hz | |||
| BVT60 | 60 | 72 | 3 | 3.6 | -600 | +600 | 75 | 230/400 | 230/400 | √ | 74 |
| BVT80 | 80 | 96 | 4 | 4.8 | -600 | +600 | 75 | 230/400 | 230/400 | √ | 79 |
|
BVT100 |
100 | 120 | 5.5 | 6.6 | -600 | +600 | 77 | 400/690 | 230/400 | √ | 129 |
| BVT140 | 140 | 168 | 7.5 | 9 | -600 | +600 | 78 | 400/690 | 230/400 | √ | 140 |
Performance Curve
Dimensions
Feedback from clients
https://youtu.be/3ecsqle7bs4
Key Advantages in Applications:
Applications
Oil-less rotary vane pressure/vacuum pumps are widely used in various industries due to their clean operation (no oil contamination) and reliable performance. Here are key application scenarios:
Semiconductor
Electronics
Vacuum coating
Food packaging
Laboratory and research
Materials science
Chemical Synthesis
Hospital suction
Medical device manufacturing
Printing
Aerospace and Aviation
Our products are sold all over the world, you can rest assured.
