RBLD-802 Helium Mass Spectrometer Leak Detector Vacuum Sniffer Dual Mode 5×10⁻¹³ Pa·m³/s Sensitivity
Products -
-
Highlight
Helium Mass Spectrometer Leak Detection
,Vacuum Sniffer Dual Mode Testing
,Industrial Helium Leak Rate Analyzer
-
ModelRBLD-802
-
Detector TypeHelium Mass Spectrometer Leak Detector
-
Minimum Detectable Leak Rate (Vacuum Mode)5×10⁻¹³ Pa·m³/s
-
Minimum Detectable Concentration (Sniffer Mode)5×10⁻¹⁰ Pa·m³/s
-
Response Time≤1.0s
-
Startup Time≤3 Min
-
Detection ModeVacuum Mode & Sniffer Mode
-
Mass Spectrometer Type180° Magnetic Sector
-
Power Supply220V/50Hz Or 110V/60Hz
-
Operating Temperature5℃ - 35℃
-
DisplayTouch Screen LCD
-
Place of OriginGuangdong, China
-
Brand NameOEM
-
Model NumberRBLD-802
-
Minimum Order Quantity1 Set
-
PriceNegotiable
-
Packaging DetailsExport-grade plywood case with shock-proof foam insert and vacuum-sealed moisture barrier
-
Delivery Time15-30 working days after order confirmation
-
Payment TermsT/T
-
Supply Ability100 Sets per Month
RBLD-802 Helium Mass Spectrometer Leak Detector Vacuum Sniffer Dual Mode 5×10⁻¹³ Pa·m³/s Sensitivity

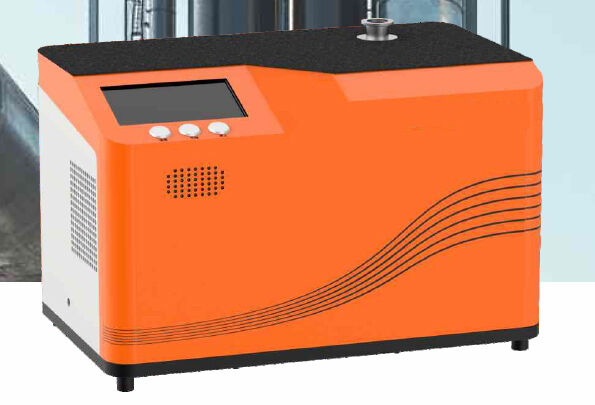

RBLD-802 Helium Mass Spectrometer Leak Detector
The RBLD-802 is a precision helium mass spectrometer leak detector engineered for high-sensitivity leak detection across a wide range of industrial applications. Featuring a 180° magnetic sector mass spectrometer tuned specifically for helium (mass 4), this instrument achieves a minimum detectable leak rate of 5*10⁻¹³ Pa·m³/s in vacuum mode and 5*10⁻¹⁰ Pa·m³/s in sniffer mode, making it ideal for demanding quality assurance and R&D environments.
Key Features
- Dual-Mode Operation: Seamlessly switch between vacuum mode for high-sensitivity component testing and sniffer mode for pressurized system leak localization.
- Ultra-High Sensitivity: 5*10⁻¹³ Pa·m³/s detection limit meets the most stringent leak testing requirements in semiconductor, aerospace, and vacuum industries.
- Fast Response: Response time ≤1.0 second ensures real-time leak indication and efficient production line testing.
- Rapid Startup: Ready for operation within 3 minutes from cold start, maximizing testing throughput.
- 180° Magnetic Sector Analyzer: Precision ion optics deliver stable, drift-free helium detection with excellent signal-to-noise ratio.
- Intuitive Touch Screen Interface: LCD touch screen with user-friendly UI for easy parameter setup, data logging, and diagnostics.
- Built-in Calibration: Automatic internal calibrated leak for routine system verification without external helium sources.
- Wide Detection Range: Covers leak rates from 1*10⁻¹² to 1*10⁻⁵ Pa·m³/s, suitable for both gross and fine leak detection.
- Robust Vacuum System: High-performance vacuum pumping system ensures stable baseline and reliable measurements across extended operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RBLD-802 |
| Detector Type | Helium Mass Spectrometer Leak Detector |
| Mass Spectrometer | 180° Magnetic Sector |
| Min. Detectable Leak Rate (Vacuum Mode) | 5*10⁻¹³ Pa·m³/s |
| Min. Detectable Concentration (Sniffer Mode) | 5*10⁻¹⁰ Pa·m³/s |
| Detection Range | 1*10⁻¹² ~ 1*10⁻⁵ Pa·m³/s |
| Response Time | ≤1.0s |
| Startup Time | ≤3 min |
| Detection Mode | Vacuum Mode & Sniffer Mode |
| Display | Touch Screen LCD |
| Power Supply | 220V/50Hz or 110V/60Hz |
| Operating Temperature | 5℃ ~ 35℃ |
| Interface | RS-232 / USB / Ethernet |
Typical Applications
- Vacuum system and chamber integrity testing
- Semiconductor and electronics manufacturing
- Refrigeration and air conditioning component testing
- Aerospace component hermeticity verification
- Automotive part leak testing (fuel systems, airbags)
- Medical device and pharmaceutical packaging inspection
- Power generation and transformer leak detection
- R&D laboratory applications
