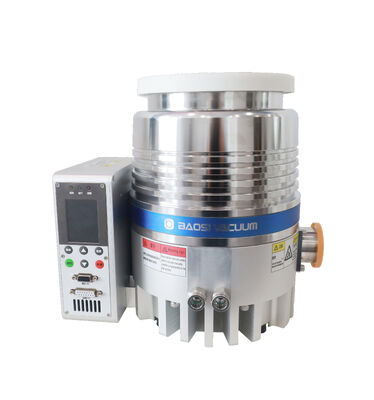

Energy Efficient High Vacuum Pump Water Cooling Grease Lubricated DFFZ160/700PM-W
-
Highlight
Energy Efficient turbo molecular pump
,Grease Lubricated High Vacuum Pump
,Water Cooling High Vacuum Pump
-
Cooling MethodWater Cooled
-
Pumping Speed700 L/s(N2)
-
Ultimatre Pressure6E-7 Pa
-
Ultimatre Pressure(CF)6E-8Pa
-
Place of OriginCHINA
-
CertificationISO9001,ISO14001,OHSAS18001
-
Model NumberDFFZ160/700PM-W
-
Minimum Order Quantity1
-
Price1
-
Packaging DetailsWooden Box
-
Delivery Time7 working days
-
Payment TermsT/T
-
Supply Ability500 Units per month
Energy Efficient High Vacuum Pump Water Cooling Grease Lubricated DFFZ160/700PM-W
BAOSI TUBO PUMP FFZ160/700-W Grease-lubricated Molecular Vacuum Pump
FEATURES
1. Grease lubricated
2. Water-cooled
3. Installation at any angle
TECHNICAL PARAMETER
| Model | DFFZ160/700-W | ||
| Inlet flange | - | LF160 | CF160 |
| Outlet flange | - | KF40 | |
| Pumping speed | L/s | 700 | |
| Compression ratio N2/H2 | - | 1×109/6×106 | |
| Ultimate pressure | Pa | 6×10-7 | 6×10-8 |
| Rotation speed | rpm | 36000 | |
| Run-up time | min | ≤5 | |
| Vibration | μm | ≤0.1 | |
| Forevacuum pump speed | L/s | 4-8 | |
| Cooling water temperature | ≤25 | ||
| Cooling water flow | L/s | ≥1 | |
| Max Power | W | ≤500 | |
| Heater voltage | V | 220 | |
| Installation direction | - | Any angle | |
| Weight | kg | 20 | |
Pumping Curve
DRAWING
APPLICATIONS :
- Semiconductor and Electronics Manufacturing
- Wafer processing
- Pharmaceutical and Biotechnology
- Food Processing
- Aerospace and defense
