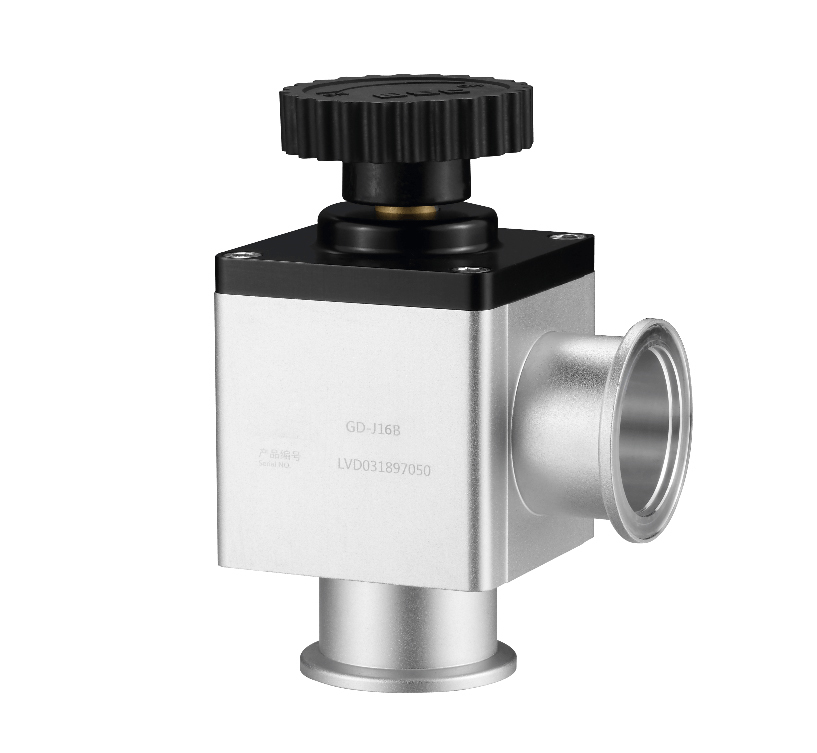

KF16 Manual Type High Vacuum Angle Valve GD-J16B

KF16 Manual Type High Vacuum Angle Valve GD-J16B

Products - High Vacuum Valve
  • Shell Material
    Al Alloy
  • Nominal Diameter
    16mm
  • Body Baking Temp
    120℃
  • Compressed Air
    Manual Vacuum Angle Valve
  • Switching Cycles
    1000 000
  • Installation Location
    Anywhere
  • Place of Origin
    CHINA
  • Brand Name
    KACO
  • Model Number
    GD-J16B
  • Minimum Order Quantity
    1 set
  • Price
    ＄85-＄1300
  • Packaging Details
    Carton
  • Payment Terms
    T/T

KF16 Manual Type High Vacuum Angle Valve GD-J16B

  • KF16 Manual Type High Vacuum Angle Valve GD-J16B
Get Price Contact Now

High Vacuum GD series Manual Baffle Valve, 16mm, GD-J16B





Structural Features:



• Two-position three-way, two-position five-way solenoid valve components quickly combine through simple operations to meet     the different needs of customers.



• Standardized, modular design, easy to replace and repair.
• Dust-proof design, suitable for the application of a small amount of dust.
• The dynamic seal is welded with AM350 material with a service life of 800,000 to 1,000,000 times ;
• The pneumatic valve opening/ closed position is a mechanical micro switch and magnetic switch: Micro switch, with sensitive       response, reliable output, strong anti -anti-interference. Magnetic switch can be adjusted in a small range.
• Anodizing surface of the aluminum alloy valve.
• Manual and pneumatic valve equipped with mechanical location instructions.
• Electromagnetic parts adopt energy-saving design.





Applications:



This valve is suitable for working media that includes air and non-corrosive gases. It is used to cut or turn on the vacuum line and is one of the important components of the vacuum system. The hand wheel is turned by hand (manual) or compressed air (pneumatic) as the driving force, and the mechanism is connected to a valve plate to lift and lower. The valve opening and closing action are completed.





Technical Parameter :



KF16 Manual Type High Vacuum Angle Valve GD-J16B 0





DRAWING:



KF16 Manual Type High Vacuum Angle Valve GD-J16B 1





Their primary functions and key roles include:



1.  Flow Control

2. Throttle Adjustment

3. Vacuum Integrity Maintenance

4. System Isolation & Protection

5. Directional Flow Management
