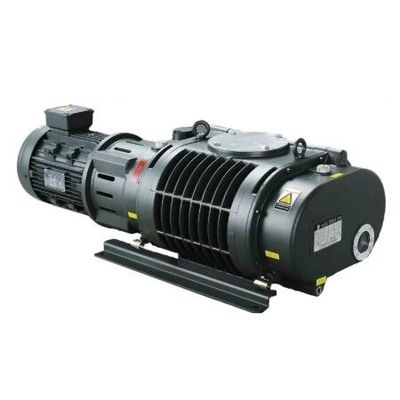

BSJ300L Roots Type Vacuum Pump 1000m3/h 3.7kW Good Geometrical Symmetry
-
Highlight
3.7kW Roots Type Vacuum Pump
,BSJ300L Roots Type Vacuum Pump
,1200m3/H roots type pump
-
FeaturesCorrosion Resistance
-
SurfacePainting
-
ColorArmy Green
-
Pumping Rate1000 M³/h(16667L/min)
-
MaterialAluminium Alloy
-
G.W.128kgs
-
N.W.115kgs
-
Meas.102*50*50cm
-
Place of OriginChina
-
CertificationCE
-
Model NumberBSJ300L
-
Minimum Order Quantity1 set
-
Packaging Detailswooden box
-
Delivery Time5-30 days
-
Supply Ability1000 sets per month
BSJ300L Roots Type Vacuum Pump 1000m3/h 3.7kW Good Geometrical Symmetry
1200 m³/h Army Green, 3.7kW Mechanical Booster Pump, Roots Pump BSJ300L,60HZ
Description :
Roots vacuum pumps, which are also called Roots blowers, are rotary plunger-type pumps where two symmetrically shaped impellers rotate in opposite directions inside the pump housing.
Characteristics:
- The use of an oil-free intermediate seal, multiple sealed ways ensures a high clean vacuum environment in the rotor chamber.
- Advanced processing ensures the good geometrical symmetry of the rotors, as well as low noise and long service life.
- The whole rotors are made of aluminum alloy, which has the characteristics of fast corrosion resistance and energy-efficient.
Technical Parameter :
| Model | Units | BSJ300L | |
| Pumping Rate | 50 Hz | m³h-1 / Lmin-1 | 1000/16667 |
| 60 Hz | 1200/20000 | ||
| Max Inlet Pressure | 50Hz | Pa | 1.3x103 |
| 60Hz | Pa | 1.1x103 | |
|
Ultimate Vacuum
|
Pa |
0.4
|
|
| Motor Power | kW(hp) | 3.7 (5.0) | |
| Inlet | -- | VG100 | |
| Outlet | -- | VF80 | |
| Cooling Method | Water-cooled | ||
| Oil Need | L | 2.0 | |
| Ambient Temp. | ℃ | 5~40 | |
| Oil | -- | BSO-46 | |
Note: The value of 'Ultimate Pressure' in this sheet is measured by the Pirani gauge when the Baosi special pump oil is used, and the value should be 4x10-3 if the McLeod gauge is used.
Performance Curve:
Dimensions:
Applications
- Vacuum distillation
- Vacuum packaging
- Thin-film coating
- Freeze drying
- Electrical engineering
- Printing
- Surface treatment technique
- Wind Energy
- Ceramics and glasses
