Highlight
Two Stage Rotary Vane Vacuum Pump
,60M3/H Rotary Vane Vacuum Pump
,Metallurgy oil sealed rotary vacuum pump
-
SurfacePainting
-
ColorArmy Green
-
Speed60 M³/h
-
Ultimate Pressure0.5 Pa
-
Noise Level65dB(A)
-
Product NameRotary Vacuum Pump
-
Weight87kgs
-
Place of OriginChina
-
CertificationCE
-
Model NumberDRV60
-
Minimum Order Quantity1 set
-
Price＄400-＄6000
-
Packaging Detailswooden box
-
Delivery Time5-10 days
-
Payment TermsT/T
-
Supply Ability500 sets per month
60M3/H Two Stage Rotary Vane Vacuum Pump Oil Type For Metallurgy

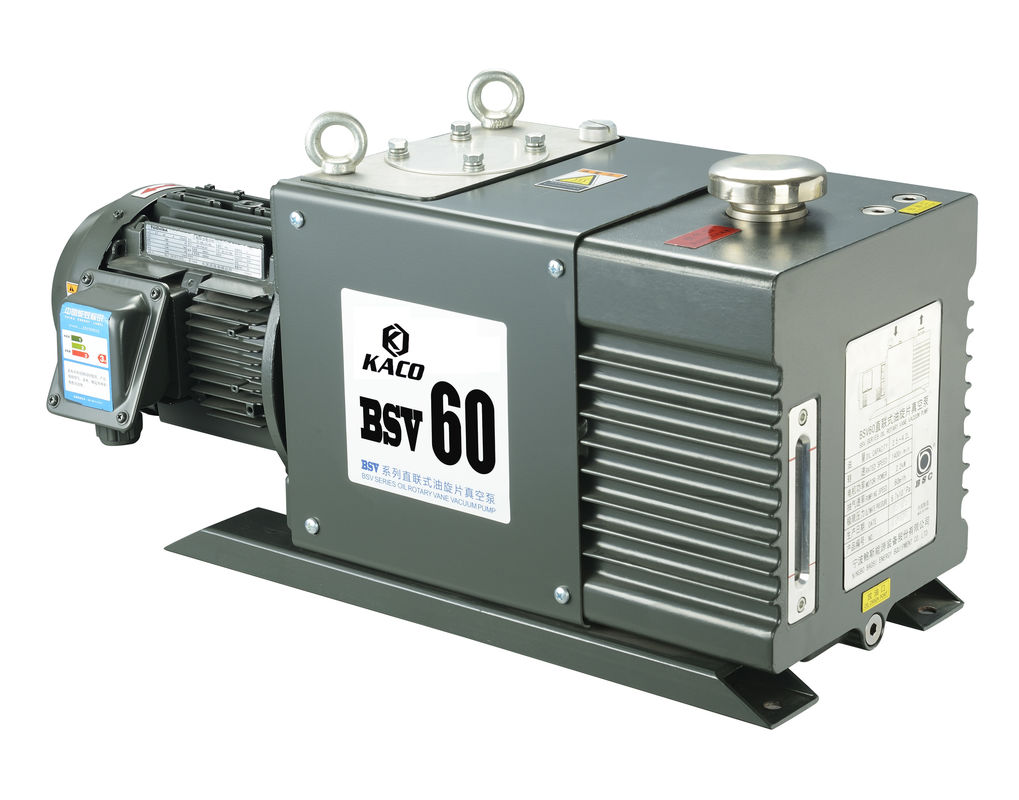

BSV60 60m3/h Double Stage Oil Sealed Rotary Vane Vacuum Pump
When the ambient temperature range is under 40℃, the air inlet pressure is less than 1300Pa, it's allowed long-term continuous operation. However, when pumped gas relative humidity is above 90%, it should open the gas ballast valve.
Technical Data
| Units | BSV60 | ||
| Pumping Rate | 50 Hz | m³h-1 / Lmin-1 | 60/1000 |
| 60 Hz | 72/1200 | ||
| Ultimate Vacuum | Without gas ballast | Pa/ mbar | 0.5/5×10-3 |
| With gas ballast | 2/2×10-2 | ||
| Inlet | VG50 | ||
| Outlet | KF40 | ||
| Oil Needs | litre | 2.5~4.2 | |
| Noise Level | dB | 65 | |
Performance Curve
Dimensions
BSV60［90］
Application
Vacuum metallurgy
Thin film coating
Freeze drying
Home Appliance
Optical Coating
